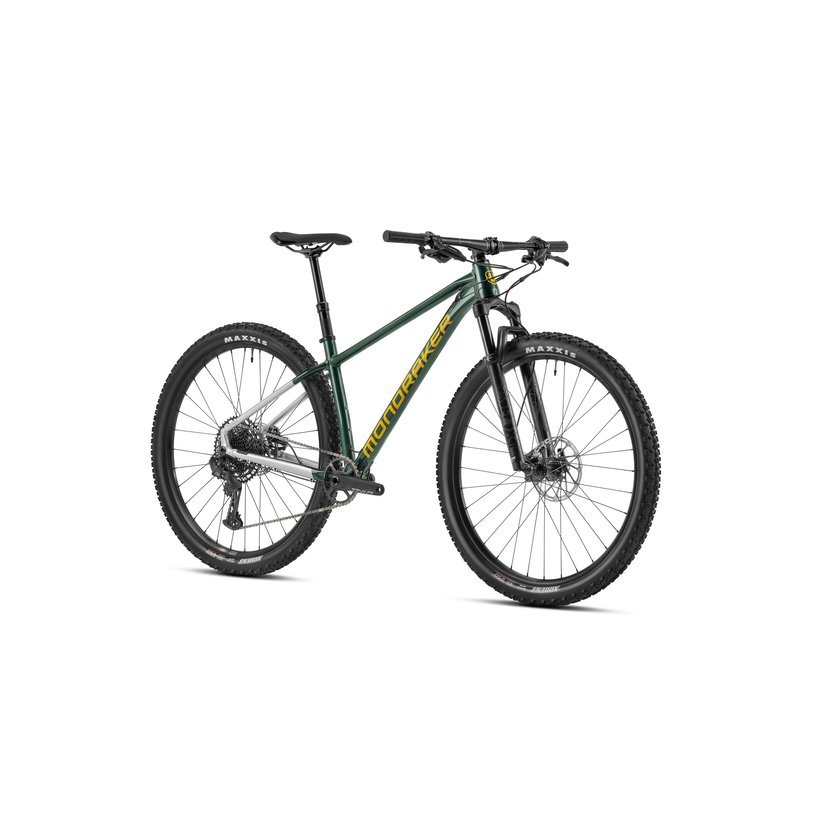

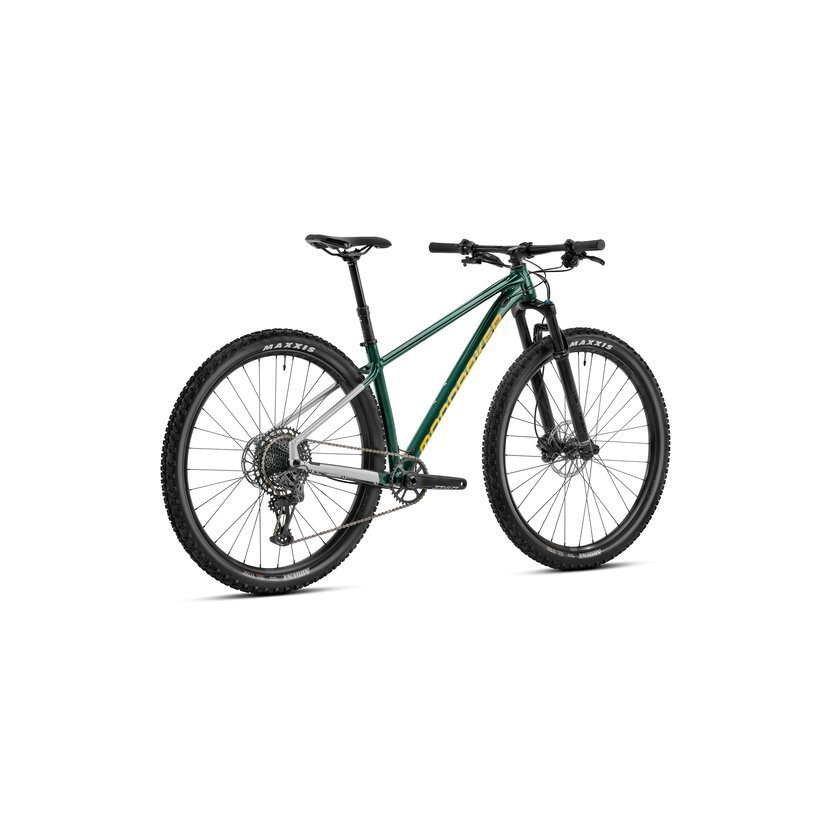

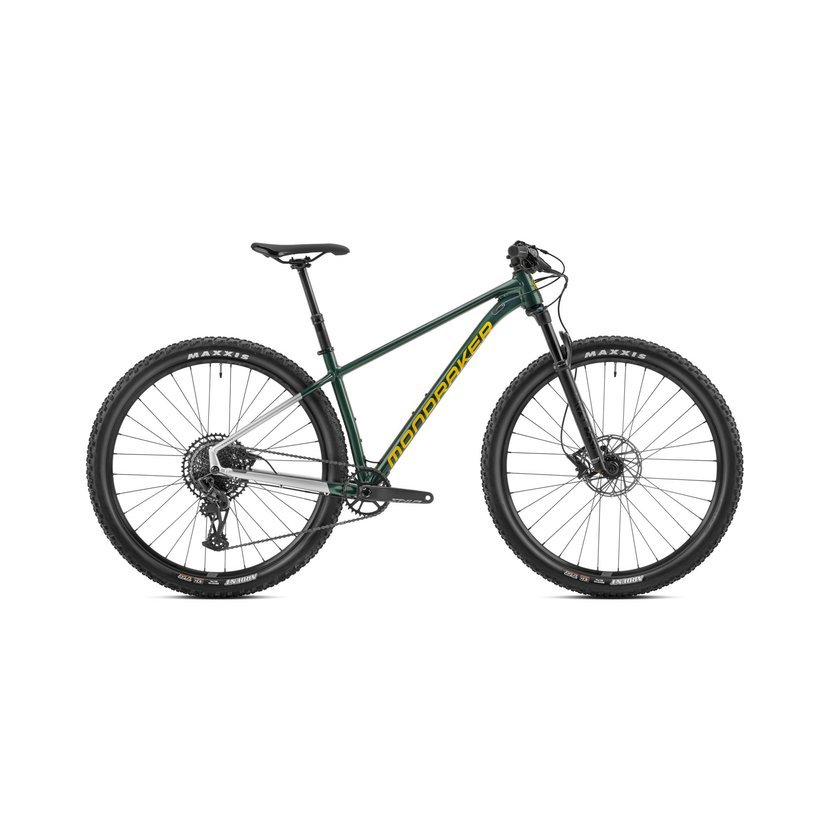

MONDRAKER Chrono DC R, british racing green/yellow, velikost L 2023

MONDRAKER Chrono DC, graphite/desert grey/orange,

rám:Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
vidlice:Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload, Fox single pull
hlavové složení:Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ox45o, bottom 51.9x40x8x45ox45o
přehazovačka:Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
řazení:Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Brzdy: Sram Level, tooled reach adjust, lever pivot bushings
kliky a převodníky:Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
středové složení:Sram DUB BSA, sealed bearings, 73mm
řidítka:Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9o backsweep, 0o upsweep, 31.8mm barbore
představec:Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7o, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
sedlovka:Onoff Pija dropper internal, diameter 31.6mm, S/M size: 405x95-125mm, L/XL size 458x120-150mm
sedlo:Mondraker XC Series, steel rail
náboj přední:Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
náboj zadní:Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
řetěz:Sram SX Eagle, 12s, Powerlock
kazeta:Sram PG-1210, 11-50T, 12s
dráty:CN round stainless steel
ráfky:MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
pláště:Maxxis Ardent 29x2.40, 60TPI, folding bead

MONDRAKER Chrono DC, graphite/desert grey/orange,

rám:Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
vidlice:Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload, Fox single pull
hlavové složení:Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ox45o, bottom 51.9x40x8x45ox45o
přehazovačka:Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
řazení:Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Brzdy: Sram Level, tooled reach adjust, lever pivot bushings
kliky a převodníky:Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
středové složení:Sram DUB BSA, sealed bearings, 73mm
řidítka:Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9o backsweep, 0o upsweep, 31.8mm barbore
představec:Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7o, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
sedlovka:Onoff Pija dropper internal, diameter 31.6mm, S/M size: 405x95-125mm, L/XL size 458x120-150mm
sedlo:Mondraker XC Series, steel rail
náboj přední:Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
náboj zadní:Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
řetěz:Sram SX Eagle, 12s, Powerlock
kazeta:Sram PG-1210, 11-50T, 12s
dráty:CN round stainless steel
ráfky:MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
pláště:Maxxis Ardent 29x2.40, 60TPI, folding bead
