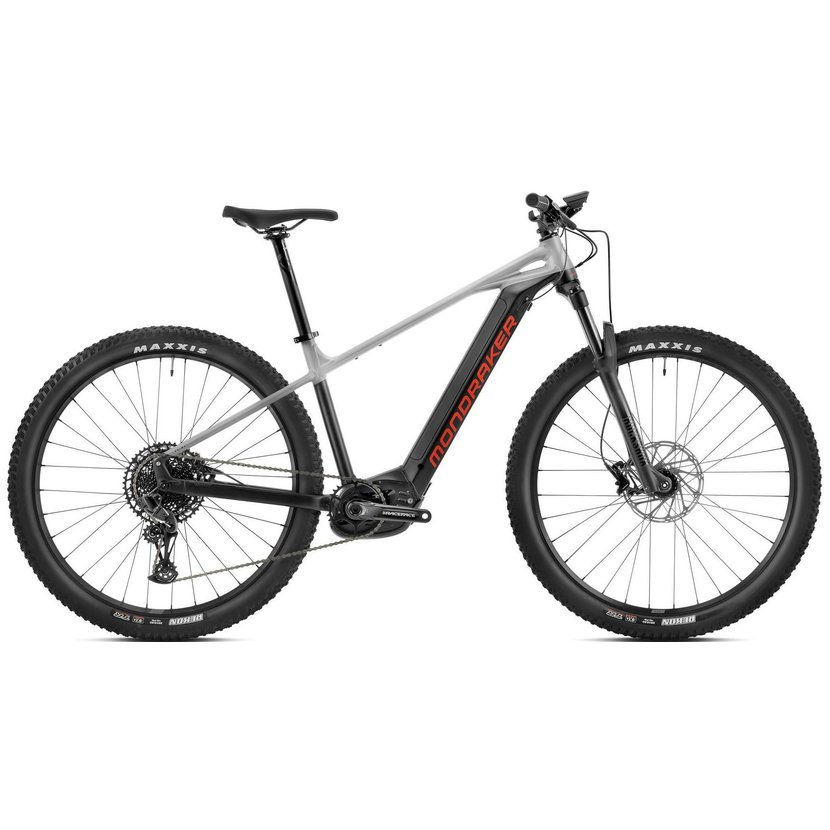

MONDRAKER Prime Blac/Grey 2023

Mondraker Prime

rám:Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Motor:Bosch Performance Line CX Cruise (25Km/h) GEN4
Baterie:Bosch Powertube 625Wh

vidlice:RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
hlavové složení:Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ox45o, bottom 51.9x40x8x45ox45o
přehazovačka:Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
řazení:Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
brzdové páčky:Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
kliky a převodníky:Race Face Aeffect ebike, 165mm
řidítka Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9o backsweep, 5o upsweep, 31.8mm barbore
představec:Onoff Sulfur FG 30mm 0o, 6061 forged alloy, 31.8mm barbore
sedlovka:Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
sedlo:MDK ebike black
náboj přední:Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
náboj zadní:Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
řetěz:Sram SX Eagle, 12s, Powerlock
kazeta:Sram PG-1210, 11-50T, 12s
dráty:CN round stainless steel
ráfky:MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
pláště:Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
